F1 testing: Red Bull's new design features studied in detail

red bull
Red Bull have used a dazzling livery to confuse rivals studying their car's new design

Red Bull caused a stir by starting pre-season Formula 1 testing with their new car in a camouflage livery.

It is similar to the way road-car manufacturers decorate their new models when they are trying to keep them away from the prying eyes of spy photographers.

Red Bull team principal Christian Horner has not revealed why the team chose to use this livery. His only explanation was that Red Bull had "never been afraid to do things a bit differently".

Media playback is not supported on this device

New F1 cars already faster than 2014

But this is a notoriously secretive team, even within the carefully guarded world of F1 engineering - they regularly make mechanics stand in front of sensitive parts of the car on the grid at grands prix to prevent photographers taking pictures.

Red Bull have set the standard for aerodynamic design excellence in the last five or six years in F1.

And their chassis itself was arguably at least as good as the Mercedes last year, with most of their deficit to the world champions explained by the lack of power of the Renault engine, and the ways in which Red Bull had to compromise optimal car performance to compensate.

So Red Bull are clearly trying to prevent the photographers - many of whom are also employed by teams to provide spy pictures of rivals' cars - from getting a good picture of the new RB11.

But what are Red Bull trying to hide?

THE NOSE

Red Bull cars from 2014 and 2015 compared

The camouflage livery starts at the very front of the car, and so do the secrets of the new Red Bull.

New regulations this year have been aimed at outlawing the 'anteater' noses that proliferated last season as a way around badly written rules that were intended to make the noses lower for safety reasons.

There are fewer ways around this now the rules have been tidied up, but the teams are still trying to come up with ways to reduce the aerodynamic losses inherent in a lower nose.

There are two solutions to this - a low nose tip which enhances front downforce by creating a 'venturi effect' of speeded up air and therefore lower pressure between nose and front wing, but which harms airflow to the rear; or a higher nose which reduces front downforce but enhances rear performance.

Red Bull's design appears to be aimed at having their cake and eating it.

They have met the requirements of two different minimum cross-sectional areas at the nose tip and a short distance behind it by having a stubby protuberance sticking out from a wider, flatter section of nose cone.

But the bodywork under the protruberance has a venturi shape on its underside - enhancing downforce - while on either side of it there is space for more air to flow through into the section under the bottom of the chassis and from there to the rear of the car.

Sauber have come up with a similar - albeit more bulbous - solution on their car.

AN 'S-DUCT'

Red Bull's S Duct

One of the features of Red Bulls in recent years has been the team's decision to employ ducts in the nose to pass air through the chassis and out of the top in front of the driver.

This tidies up the airflow under the nose and therefore makes it move faster, reducing pressure and thereby increasing downforce.

Last year the duct was on the underside of the nose, but this year extends around to the two side edges of the chassis, where it transitions from horizontal to vertical. The inlets can be seen underneath the camera mounting pods.

It then exits behind the driver number on the top of the chassis.

BLOWN FRONT AXLE

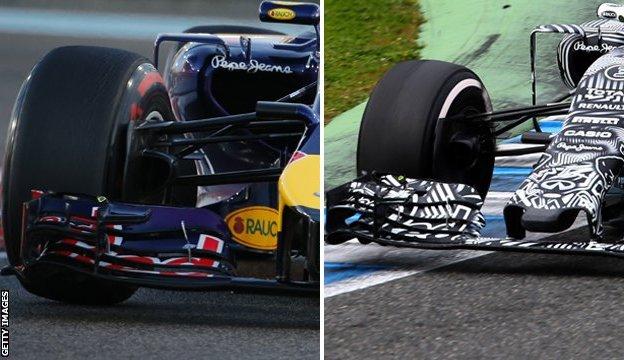

Red Bull's Blown Front Axle

F1 aerodynamic design at the front of the car focuses on a creating a powerful vortex of air that starts from the front wing, flows inside the front wheels and then around the side pods and through the back of the car between the bodywork and the rear wheels.

It is akin to black magic, making this work, but the more powerful the vortex, the more downforce the car creates and the faster it goes around corners.

It is usually impossible to see this airflow - but there was a rare opportunity at the Brazilian Grand Prix a couple of years ago when a damp practice session meant it could actually be glimpsed on some of the cars.

The problems in creating it start with the relationship between the front wing and the wheels.

As the front wing only can extend only about halfway across the front tyres following a rule change for 2014, it is all the harder to set this airflow up.

The wheels create an effective wall, and produce what is called 'dirty air' that can disrupt the smooth flow of air around the car.

One way to reduce this effect is a so-called 'blown front axle'. This is created by ducting air from the brake ducts on the inside of the wheels, through a hollow axle and out of a hole in the wheel nut.

This airflow, if it is powerful enough, prevents the wake from the tyres from disturbing that vortex.

SIDEPODS

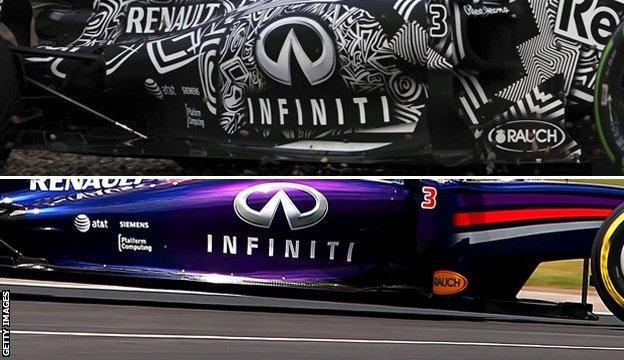

Red Bull sidepod's from 2014 and 2015

Once the airflow has come out from under the nose, it then has to negotiate the 'sidepods' - the bodywork that starts beside the driver and which contains the cooling apparatus for the engine, such as radiators.

Achieving the best airflow both through the sidepods and around them is crucial to overall downforce.

The Renault engine used by Red Bull has probably the greatest cooling requirement of any on the grid, which makes this job especially hard for the team - and although Renault has found more power from its engine for 2015, the cooling requirements have stayed the same, according to Red Bull chief technical officer Adrian Newey.

But although the camouflage does a good job of hiding it, Red Bull have worked wonders to create sidepods with a particularly large under-cut on this year's car..

This should help the team create more powerful rear downforce.

OTHER SECRETS

Will the Red Bull car have other secrets that have so far not been spotted? Certainly. And many of the design features that dictate the pace of an F1 car are hidden under the skin, never to be seen by outside eyes.

Equally, as with all F1 cars, it is a prototype that will constantly change and be honed through the year.

But when in its definitive 2015 livery at the first race, it will be a little easier to spot what these features are.
