Sentinel-6: 'Dog kennel' satellite blasts off on ocean mission

  • Published
Media caption,

Artwork: The unusual shape, with fixed solar panels, keeps the satellite very stable

A satellite that will be critical to the understanding of climate change has blasted skyward from California.

Sentinel-6 "Michael Freilich" is set to become the primary means of measuring the shape of the world's oceans.

Its data will track not only sea-level rise but reveal how the great mass of waters is moving around the globe.

Looking somewhat like a dog kennel, the sophisticated 1.3-tonne satellite was taken aloft from the Vandenberg base on a SpaceX Falcon-9 rocket.

The Sentinel is a joint endeavour between Europe and the US, and will continue the measurements that have been made by a succession of spacecraft, called the Jason-Topex/Poseidon series, going back to 1992.

These earlier missions have shown unequivocally that sea levels globally are rising, at a rate in excess of 3mm per year over the 28-year period. And their most recent data even suggests there is an acceleration under way, with levels recorded as going up at over 4mm per year.

Image source, ESA/Stéphane Corvaja
Image caption,
The Falcon rocket, with its Sentinel-6 payload, heads out over the Pacific Ocean

About one-third of the measured global sea-level rise on Earth is from the expansion of warming water, a key driver of which is climate change. The rest is largely from melting ice.

Sentinel-6, like all the satellites before it, will use a radar altimeter to assess the height of the oceans.

This instrument sends down a microwave pulse to the surface and then counts the time it takes to receive the return signal, converting this into an elevation.

Sentinel-6 will, however, fly with a much improved capability, which will allow it to see more clearly what seas are doing right up against coastlines; and also how inland water features - rivers and lakes - are behaving.

Image caption,

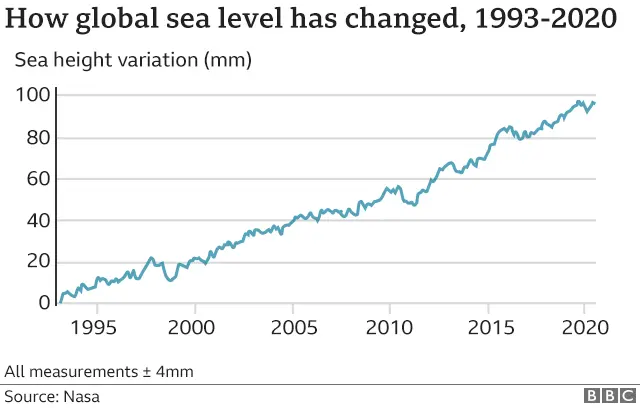

The record has been built by four previous satellites. The baton now passes to Sentinel-6

Why is ocean height so important?

Elevation is a key parameter for oceanographers. Just as surface air pressure reveals what the atmosphere is doing above, so ocean height will betray details about the behaviour of water down below.

The data gives clues to temperature and salinity. When combined with gravity information, it will also indicate current direction and speed.

The oceans store vast amounts of heat from the Sun; and how they move that energy around the globe and interact with the atmosphere are what drive our climate system.

But having the longest possible record of change is essential.

"The longer that time series, the better able we are to separate out the natural climate signals from the forced ones, from the human signal," explained European Space Agency mission scientist Craig Donlon.

"It means we can run climate models backwards and then, through a validation process, have confidence that when we run them forwards we have some predictive skill."

Image caption,
The rise in sea level is not uniform. In some regions of the globe, the yearly change has been much more rapid

Why is the 3mm figure a little misleading?

The oceans are not rising at the same rate everywhere. There are parts of the world where the elevation exceeds 1cm per year.

This is due to a multitude of factors, including changes in ocean circulation, changes in heat content, and the uneven dispersal of meltwater from ice sheets.

It's a little recognised fact that the discharge from mighty glaciers, such as Thwaites Glacier in Antarctica, has the greatest effect on ocean height at far distances.

"Sea-level rise is not uniform; it's really important to recognise this," Christine Gommenginger, from the UK's National Oceanography Centre (NOC) in Southampton, told BBC News.

"It's the regional sea-level budgets that we're now targeting. Global sea-level rise - fine, we know about this. But it's the local picture we want, and the altimetry can give us this."

Image caption,

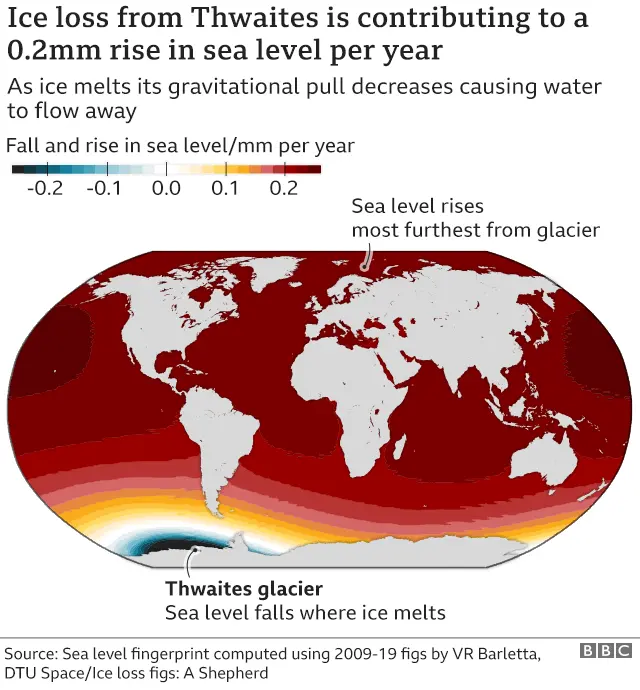

Meltwater from the huge Thwaites glacier affects sea level a long way away from Antarctica

Who uses sea-surface height data?

Oceanographers and climatologists, obviously. But the data is of supreme importance to the weather forecasters as well.

In the return signal is information about the state of the ocean - about how rough it is, which speaks also to the strength of the winds.

The ocean and its connection to the atmosphere is perhaps best illustrated in hurricanes. These storms get their energy from warm tropical water which an altimeter can sense by the way the sea surface bulges.

And it's satellites like Sentinel-6 that give forewarning of an El Niño event, which sees warm waters in the western Pacific shift eastwards. This sets off a global perturbation in weather systems, redistributing rainfall and bumping up temperatures.

"Other users include ship routers - they don't want their vessels to go through storms; they want to avoid big waves," said Remko Scharroo, from the intergovernmental weather agency Eumetsat. "With the Sentinel-6 altimeter, we will also see the eddies in the ocean, and if you're a ship router this information will tell you how to go with the current, not against it."

It goes without saying that coastal and flood defence planning depends on the elevation data. No new nuclear power station can be built without understanding where high tide and storm surges might reach decades into the future.

Image caption,

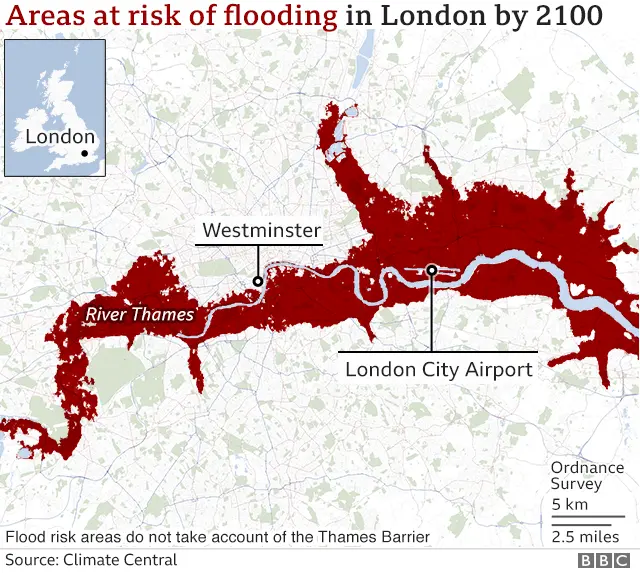

The information is used to plan coastal and flood defences decades into the future

What's in the special name?

The "Sentinel" moniker is the name given to all the satellites in the European Union's Copernicus Earth-observation programme, of which this mission is a part.

Its number shows that it is the sixth in the series of different sensor types planned for the network.

The name Michael Freilich commemorates the former director of the US space agency Nasa's Earth sciences division who died earlier this year. He was an oceanographer by background and was instrumental in putting together the international partnership behind the mission.

"Mike Freilich exemplified the commitment to excellence, generosity of spirit and the unmatched ability to inspire trust that made so many people across the world want to work with Nasa, to advance big goals on behalf of the planet and its people," commented Thomas Zurbuchen, who heads Nasa's science directorate.

This Twitter post cannot be displayed in your browser. Please enable Javascript or try a different browser.View original content on Twitter
The BBC is not responsible for the content of external sites.
Skip twitter post by Thomas Zurbuchen

Allow Twitter content?

This article contains content provided by Twitter. We ask for your permission before anything is loaded, as they may be using cookies and other technologies. You may want to read Twitter’s cookie policy, external and privacy policy, external before accepting. To view this content choose ‘accept and continue’.

The BBC is not responsible for the content of external sites.
End of twitter post by Thomas Zurbuchen

What's the UK angle in this mission?

British engineers built the propulsion module on Sentinel-6. It has eight 5-newton thrusters that will help maintain the 1.3-tonne satellite in the very precise orbit required to make its measurements.

The module is a kind of plug and play unit that can easily be incorporated into other spacecraft.

"As we have recurring equipment, it means we can do bulk procurement which is cost-saving," said Natasha Pushkin from Airbus UK. "And as we have reusable building blocks, this means that designs and processes can be established in advance, which is time saving."

Further modules are to go in the successor to Sentinel-6 Michael Freilich, and in Europe's next-generation polar-orbiting weather satellites.

But beyond the industrial contribution, UK scientists and agencies will be heavy users of the data - at NOC to understand the broader behaviour of the oceans, and at the UK Met Office which will feed its data into the numerical models that produce the next day, medium and long-range weather forecasts.

Image source, AIRBUS UK
Image caption,

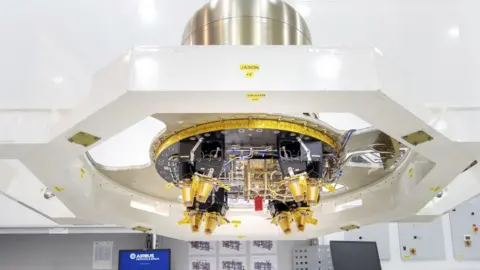

Sentinel-6's propulsion system is a design that could go in other spacecraft
Image source, ESA
Image caption,

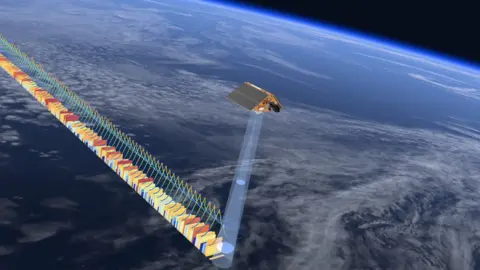

Artwork: Sentinel-6 carries an altimeter to measure the elevation of water surfaces and follow me on Twitter: @BBCAmos
